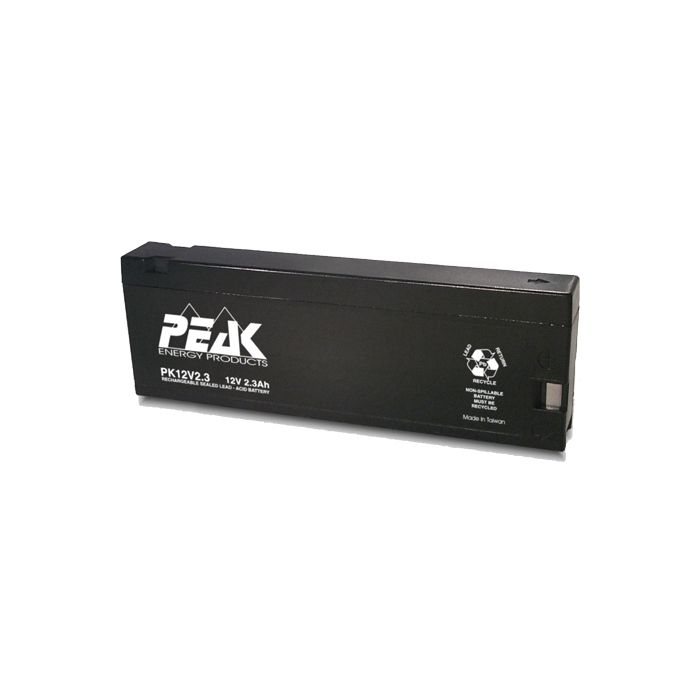

Peak Energy PK12V2.3PC 12V 2.3Ah Battery
- Sold out
- Compatible with: pk12v2.3pc-batt
- Heavy manufactured batteries
- Plug & play installation, no assembly required
- Expected battery life: 3-5 years
Peak Energy PK12V2.3PC 12V 2.3Ah Battery
High Performance
Brand New Fresh Stock
1 Year Warranty Included
$36.99
Need help choosing?
Call toll free: 1-888-755-7718 or chat with an expert
About the Peak Energy PK12V2.3PC 12V 2.3Ah Battery
| Recharge Method | Connect battery to a Current Limited, Constant Voltage Source.Limit the initial recharge current to 575 mA or less.To promote satisfactory performance in Cyclic applications, a minimum recharge current of 230 mA is recommended.Employ Charge Voltage Temperature Compensation when battery temperature is less than 50°F (10°C) 0r greater than 86°F (30°C), Use the Recommended voltage and normalize to 77°F (25°C).The use of compensation through the whole temperature range is not generally necessary, but doing so may optimize service life.If the Recommended recharge voltage is used, no Temperature Compensation is required within the range of 50 ~ 86°F (10 ~ 30°C)Cyclic Application Recharge Voltage (77°F / 25°C)MinimumRecommendedMaximum |
| Temperature Coefficient | -2.8mV/°F/Cell (-5mV/°C/Cell)Standby Application Recharge Voltage (77°F/25°C)MinimumRecommendedMaximum |
| Temperature Coefficient | -1.7mV/°F/Cell (-3mV/°C/Cell) |
.nobrtable br { display: none }SPECIFICATIONS Model DescriptionPeak Energy PK12V2.3PC rechargeable sealed lead acid (VRLA) batteryNominal Voltage12 VoltCapacity (@ 20hr-rate)2.3 AhWeight1.539 Lbs (0.698 kg)Case MaterialA.B.S. (UL94-HB)TerminalPressure ContactMaximum Short Duration Discharge Current34.5 Ah (5 Seconds or Less);
23 Ah (10 Seconds or Less);
13.8 Ah (60 Seconds or Less)Internal Resistance105 mOhm (Fully Charged Battery) (Approx)Energy Density (@ 20hr-rate)1.77 watt-hours/cubic inch (108.09 watt-hours/litre)Specific Energy (@ 20hr-rate)17.94 watt-hours/pound (39.54 watt-hours/kg)Operating Temperature RangeDischarge: 14°F (-10°C) ~ 104°F (40°C);
Recharge: 32°F (0°C) ~ 104°F (40°C);
Storage:-20°F (-4°C) ~ 40°F (104°C)Self Discharge RateAbout 3 %/Month @ 68 ~ 77°F (20 ~ 25°C)
