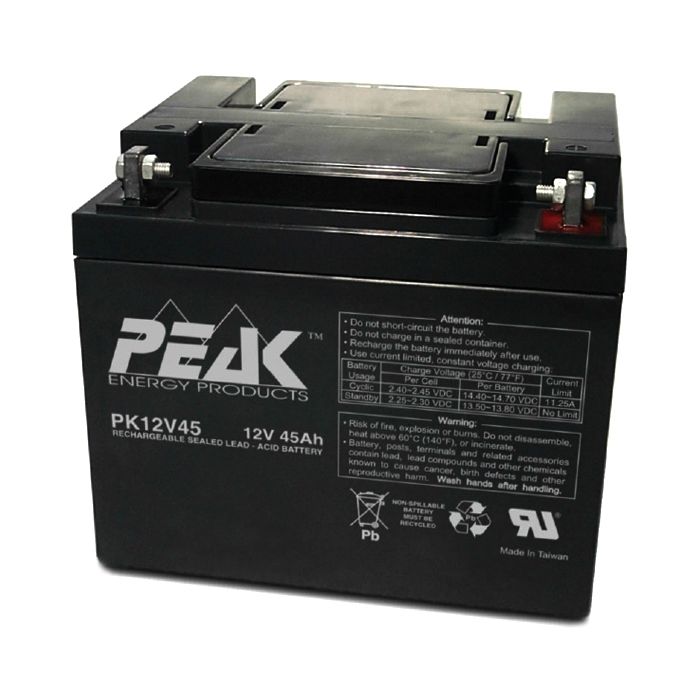

Peak Energy PK12V45B2 12V 45Ah Battery
- Sold out
- Compatible with: PK12V45B2-batt
- Heavy manufactured batteries
- Plug & play installation, no assembly required
- Expected battery life: 3-5 years
Peak Energy PK12V45B2 12V 45Ah Battery
High Performance
Brand New Fresh Stock
1 Year Warranty Included
$199.99
Need help choosing?
Call toll free: 1-888-755-7718 or chat with an expert
About the Peak Energy PK12V45B2 12V 45Ah Battery
| Recharge Method | Connect battery to a Current Limited, Constant Voltage Source.Limit the initial recharge current to 11.25 Ah or less.To promote satisfactory performance in Cyclic applications, a minimum recharge current of 4.5 Ah is recommended.Employ Charge Voltage Temperature Compensation when battery temperature is less than 50°F (10°C) 0r greater than 86°F (30°C), Use the Recommended voltage and normalize to 77°F (25°C).The use of compensation through the whole temperature range is not generally necessary, but doing so may optimize service life.If the Recommended recharge voltage is used, no Temperature Compensation is required within the range of 50 ~ 86°F (10 ~ 30°C)Cyclic Application Recharge Voltage (77°F / 25°C)MinimumRecommendedMaximum |
| Temperature Coefficient | -2.8mV/°F/Cell (-5mV/°C/Cell)Standby Application Recharge Voltage (77°F/25°C)MinimumRecommendedMaximum |
| Temperature Coefficient | -1.7mV/°F/Cell (-3mV/°C/Cell) |
SPECIFICATIONS Model DescriptionPeak Energy PK12V45B2 rechargeable sealed lead acid (VRLA) batteryNominal Voltage12 VoltCapacity (@ 20hr-rate)45 AhWeight32.37 Lbs (14.68 kg)Case MaterialA.B.S. (UL94-HB)TerminalBolt and Nut Type (M6)Maximum Short Duration Discharge Current675 Ah (5 Seconds or Less);
450 Ah (10 Seconds or Less);
270 Ah (60 Seconds or Less)Internal Resistance6 mOhm (Fully Charged Battery) (Approx)Energy Density (@ 20hr-rate)1.57 watt-hours/cubic inch (95.6 watt-hours/litre)Specific Energy (@ 20hr-rate)16.68 watt-hours/pound (36.77 watt-hours/kg)Operating Temperature RangeDischarge: -4°F (-20°C) ~ 122°F (50°C);
Recharge: 32°F (0°C) ~ 104°F (40°C);
Storage:-4°F (-20°C) ~ 104°F (40°C)Self Discharge RateAbout 3 %/Month @ 68 ~ 77°F (20 ~ 25°C)
DIMENSIONS Length7.83 in. (199 mm)Width6.54 in. (166 mm)Case Height6.73 in. (171 mm)Terminal Height6.73 in. (171 mm)
CHARTS Constant Current Discharge Characteristics at 73.4°F (23°C)Discharge TimeDischarge AmperesCapacity in Ah’sFinal VoltageDischargeC-Rate20.0 hr2.2545.0010.500.059.2 hr4.5041.6210.500.105.0 hr7.6538.1410.290.174.1 hr9.0036.6410.200.202.1 hr15.7533.529.940.3564.0 min27.028.809.540.632.5 min45.024.349.001.07.2 min13516.666.003.0
